方案

方案
光伏/儲能/充電樁

光伏/儲能/充電樁

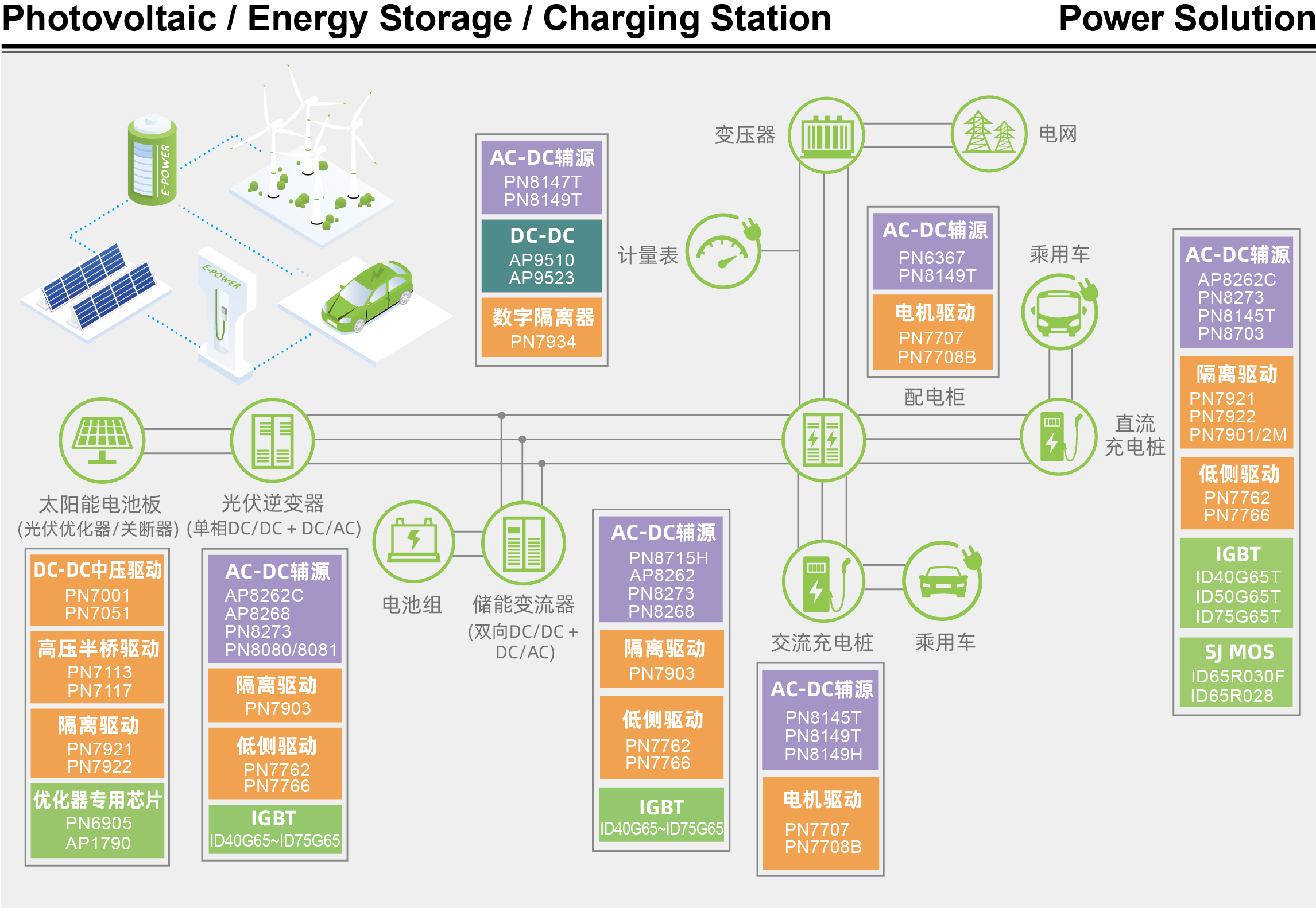

    Chipown為光伏/儲能/充電樁等新能源場景提供完整的功率套片方案，從高低壓電源到驅動，從隔離器到IGBT/SJ，品類豐富，性能先進。



ProductCharacterStandby Power Start-up CurrentVDD Operation VoltageProtectionOutput PowerFrequencyPackageNote
AP8262PWM Converter<500mW 200uA7.6~34V40V<100W 500kHz(Max.)SOP8
AP8262C
PWM Converter<200mW 100uA7.6~34V40V<100W 500kHz(Max.)SOP8
AP8268PWM Controller <75mW2uA10~26V30V<70W 65kHzSOT23-6-
PN8273PWM Controller<50mW-1.5mA10~40V40V<120W 65kHzSOP7HV Start-up


ProductCharacterSW VoltageStandby PowerRDS(on)Adaptor Output PowerOpen Frame Output PowerFrequencyPackageVDD Operation Voltage
PN8145TLow Standby-Power Off-line PWM converter1100V<50mW12Ω8W10W60kHzDIP79~24V
PN8149HLow Standby-Power Off-line PWM Converter800V<50mW2.5Ω18W30W60kHzDIP89~24V
PN8147TLow Standby-Power Off-line PWM converter1100V<50mW6Ω10W13W60kHzDIP79~24V
PN8149TLow Standby-Power Off-line PWM Converter1100V<50mW4Ω18W24W60kHzDIP89~24V
PN8081
PWM Converter200V-0.7Ω10W12W100kHz~1.5MHzDFN4*4-
PN8080PWM Converter200V-1.5Ω6W8W100kHz~1.5MHzSOP8-


ProductCharacterSW VoltageStandby PowerRDS(on)VDD Operation VoltageOutput PowerCC/CV precisionPackageVDD Operation Voltage
PN6367CC/CV PSR Converter680V<50mW4.5Ω10~30V20W±5%SOP7Automatic Reclosing Protector


ProductCharacterMaximum EffciencyOperating VoltageQuiescent IqOutput VoltageOutput VersionsAccuracyPackageCross Reference
AP951040V 0.7A Power Module90%8～40V300μA5V5V±2%DFN6.5×5-14L
AP9523

18V 2.5A Power Module

90%4.5～18V410μAAdj3.3V±2%SIP2.8*3*1.97


ProductCharacterIO+/-(typ.)VCC1VCC2Ton/Off(typ.)Tr/f(typ.)Deadtime(typ.)PackageCross
           Reference
PN7901

Isolated Single Channel Gate Driver

5.0/5.0A3.1V~20V10V~20V120&120ns7&7ns-SOP8
PN7902M
Isolated Single Channel Gate Driver5.0/5.0A3.1V~20V10V~20V120&120ns7&7ns-SOP8
PN7903

Opto-Compatible Single-Channel Isolated Gate Driver

4.5/5.3AVR <8V14V~33V70&70ns28&25ns-SOP6(W)
PN7906         single-channel lsolated gate driver for Sic/1GBTwith active protection10/10A3V~5.5V13~33V130/130ns28/28ns
SOP6(W)
PN7921            Isolated Dual-Channel Gate Driver4.0/8.0A3V~5.5V9V~20V44&44ns7&7nsAdjSOP16(W)
PN7922          Isolated Dual-Channel Gate Driver4.0/8.0A3V~5.5V9V~20V45&45ns7&7nsAdjLGA-13


ProductCharacterVOFFSET (max)IO+/-(typ.)VinTon/Off(typ.)Deadtime
           (typ.)		OUT phasePackageCross
           Reference
PN7010        High And Low Side Driver200V1.0/1.5A5V~20V180&150ns-

HO in phase with HIN;

A version:LO in phase with LIN;

B version:LO out phase with LIN

SOP8-
PN7011        High And Low Side Driver150V4.0/4.0A9V~17V30&30ns-LO/HO in phase with LIN/HIN

DFN4×4

SOP8

SOP8/PP

-
PN7113           High And Low Side Driver600V3.0/4.0A10V~20V170&150ns-LO/HO in phase with LIN/HINSOIC16-
PN7117            High  Side Driver600V1.2/0.6A10V~20V135&130ns-HO in phase with HINSOP8-
PN77642-Phase Low Side Driver24V5/5A4.5V~24V7&7ns--

DFN3×3

SOP8

MSOP8/PP

-
PN7762        2-Phase Low Side Driver24V5/5A4.5V~24V7&7ns--

DFN3×3

SOP8

MSOP8/PP

-
PN7763           2-Phase Low Side Driver24V5/5A4.5V~24V7&7ns--

DFN3×3

SOP8

MSOP8/PP

-


ProductCharacterVOFFSET(max)IO+/-(typ.)VinTPLH/TPHLDeadtime(typ.)  ISLEEP      Package             Rdson(H+L)
PN7705            2-Phase Bridge Driver32V3A6.5V~28V1500ns1000ns100uASOP81Ω
PN7706           2-Phase Bridge Driver36V3A2.7V~24V900&900ns350ns10uASOP8-PP0.6Ω
PN7707            2-Phase Bridge Driver36V1.75A3~24V900&900ns350ns10uASOP8-PP0.6Ω
PN7708B            2-Phase Bridge Driver40V1.75A6~38V700&700ns250ns10uASOP8-PP0.36Ω
PN7709            2-Phase Bridge Driver40V1.75A6~38V700&700ns250ns10uASOP8-PP0.12Ω


ProductCharacterV(BR)CESIC(100)VCE(sat)VFEon  Eoff      Qrr        Package
ID40G65            Insulated Gate Bipolar Transistor650V40A1.37V1.48V0.87mJ0.42mJ1105nCTO-247-3L
ID50G65           Insulated Gate Bipolar Transistor650V50A1.38V1.49V1.26mJ0.58mJ1260nCTO-247-3L
ID60G65            Insulated Gate Bipolar Transistor650V60A1.63V2.05V1.60mJ1.0mJ1300nCTO-247-3L
ID75G65            Insulated Gate Bipolar Transistor650V75A1.62V1.7V1.23mJ3.05mJ856nCTO-247-3L
ProductCharacterBVDSSIDVthRDS(on) ESD  FRD    Comment     Package
ID65R028Super Junction N-Channel Power MOSFET650V90A3.5V28mΩNoNoDeep Trench GenITO-247
ID65R030F           Super Junction N-Channel Power MOSFET650V90A3.5V28mΩNoYesDeep Trench GenITO-247



注： AC-DC DC-DC Driver Digtal PMIC Power Device Power Module
如果需要產品的詳細手冊或其他資料，請向我們申請。>>
