電視

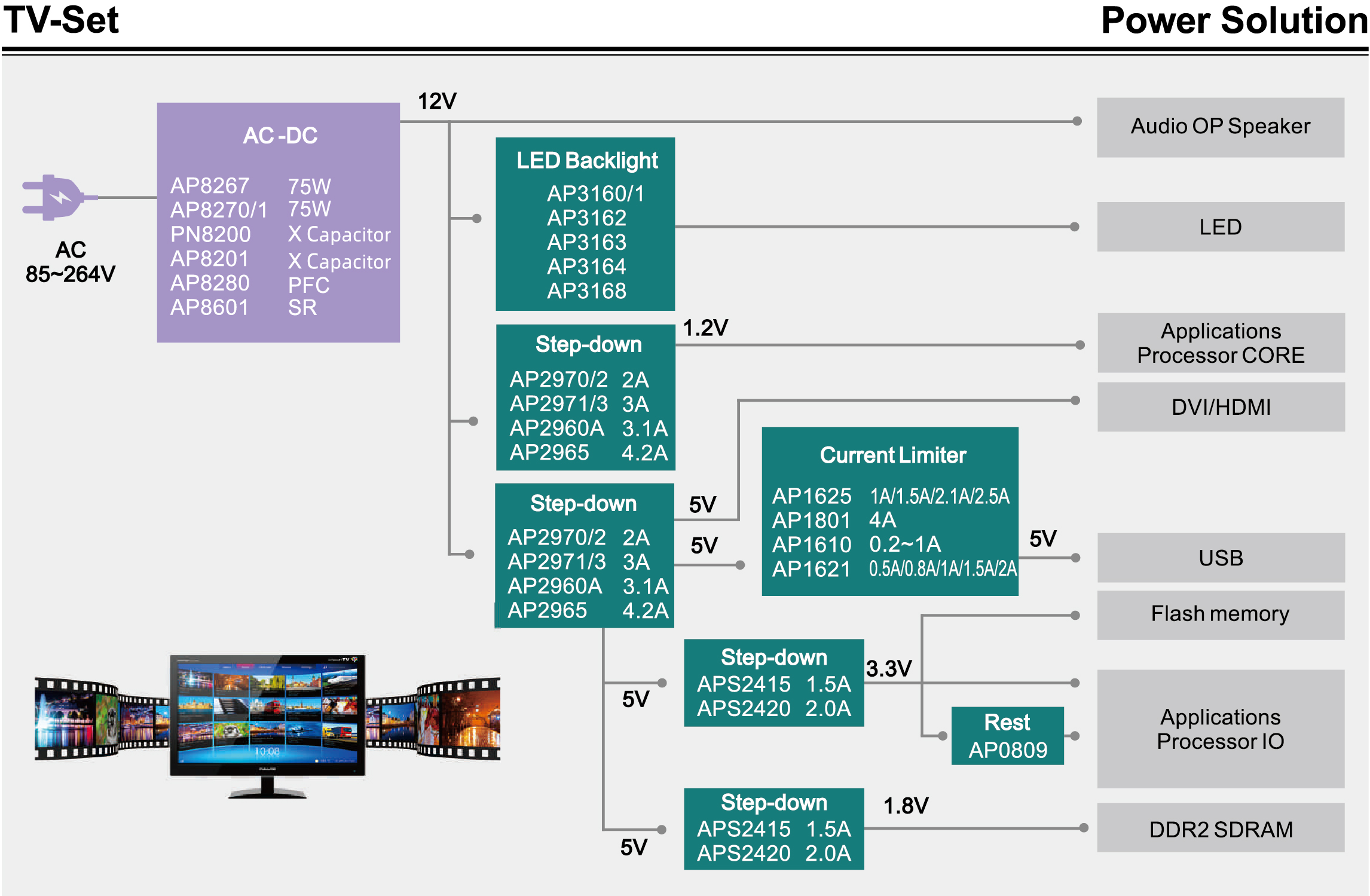

Chipown是業內領先的家用電器電源管理方案的供應商。我們可以為您的數字電視系統提供超低待機的AC/DC、升降壓DC/DC、USB限流、復位、等離子行列高壓驅動芯片等較完整的電源及驅動解決方案，為客戶提供高性價比、性能優異、品質穩定的專用電源IC產品。
| Product | Character | Standby Power | Start-up Current | VDD Operation Voltage | Vcc_Clamp | Output Power | Frequency | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| AP8267 | ?PWM Controller | ?<100mW | 2uA | 8~26V | 27V | <70W | 65kHz | SOT23-6 | - |
| PN8270 | ??PWM Controller | <100mW | 4uA | 10~26V | 28V | <70W | 100kHz | SOT23-6 | - |
| Product | Character | Total X Capacitance | Maximum Frequency | BV | Supply Current | Output Power | Frequency | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8200 | X Capacitor Discharge | 100nf to 6μF | 1.5MΩ to 130kΩ | 1000V | 15uA | - | - | SOP8 | |
| PN8201 | X Capacitor Discharge | 100nf to 6μF | 1.5MΩ to 130kΩ | 1000V | 15uA | - | - | SOP8 |
| Product | Character | Driver | Standby Power | Maximum Frequency | VDD Operation Voltage | Output Power | CC/CV precision | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8280 | COT PFC Controller | MOS | <75mW | 135kHz | 9V~50V | 90W~350W | - | SOP8 |
| Product | Character | BV | RDS(on) | Standby Power | Max VDD Operation Voltage | Output Power | Operation Mode | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8601 | SR Converter | 120V | - | 5mW | 20V | 20V | DCM/CCM/QR | SOT23-6L | Charger/Adapter |
| Product | Character | Maximum Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Output Versions | Accuracy | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP2970 | 500kHz 2A Synchronous PWM | 95% | 4.5～18V | 400μA | 0.6～13V | Adj | ±2% | SOT23-6L | |
| AP2971 | 500kHz 2A Synchronous PWM | 95% | 4.5～18V | 400μA | 0.6～13V | Adj | ±2% | SOT23-6L | |
| AP2972 | 500kHz 2A Synchronous PWM | 95% | 4.5～18V | 400μA | 0.6～13V | Adj | ±2% | SOT23-6L | |
| AP2973 | 500kHz 3A Synchronous PWM | 95% | 4.5～18V | 400μA | 0.6～13V | Adj | ±2% | SOT23-6L |
| Product | Character | Maximum Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Output Versions | Accuracy | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP2960A | 133kHz 30V 3A Synchronous CV/CC Step-Down Converter | 94% | 6～30V | 2.5mA | 0.808～12V | Adj | ±2% | SOP8/PP | |
| AP2965 | 130kHz 40V 4.2A Synchronous CV/CC Step-Down Converter | 96% | 6～40V | 0.5mA | 3.4～16.5V | Adj | ±2% | SOP8/PP | - |
| Product | Character | Maximum Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Output Versions | Accuracy | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| APS2415 | 1.5MHz,1.5A Synchronous PWM | 96% | 2.5~6.5V | 300μA | 0.6~5.0V | Adj | ±2% | SOT23-5L | |
| APS2420 | 1MHz,2A Synchronous PWM | 97% | 2.5～6.0V | 60μA | 0.6~5.0V | Adj | ±2% | SOT23-5L SOT23-6L DFN3*3-10 MSOP-10EP |
| Product | Character | Operating Voltage | Current Limit | Operating Current | Quiescent Iq | Iq in Shutdown | Rdson | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP1610 | Programmable Power Switches | 2.4~5.5V | 130mA~1400mA | - | 9μA | <1μA | 200mΩ | SOT23-5L | - |
| AP1621 | Power Switches with Flag | 2.5~5.5V | 2.1A/1.5A/ 1A/0.65A | 1.5A/1A/ 0.8A/0.5A | 25μA | <1μA | 80mΩ | SOT23-5L UDFN1.8*2.0-6 | |
| AP1625 | Power Switches with Flag | 2.7～5.5V | 1.8A/2.75A/3.2A | 1.5A/2.1A/2.5A | 25μA | <1μA | 55mΩ | SOT23-5L | |
| AP1801 | Power Switches with Flag | 2.7～5.6V | - | 4A | 100μA | <1μA | 21mΩ | DFN3*2-14L |
| Product | Character | Typical Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Iq in Shutdown | SW Current Limit | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP3160 | 120kHz Boost Controller for LED Driver | 95% | 9V ~ 35V | 800μA | ′- | 175μA | VCS=400mV (set by CS voltage) | SOP8 | |
| AP3161 | 120kHz Boost Controller for LED Driver | 95% | 9V ~ 35V | 800μA | - | 175μA | VCS=400mV (set by CS voltage) | SOP8 | |
| AP3162 | 4CH High Performance LED Driver | 95% | 9V ~ 30V | 6mA | - | 20μA | VCS=380mV (set by CS voltage) | SOP16-PP TSOP16-PP SOP16 DIP16 | |
| AP3163 | 120kHz Boost Controller for LED Driver | 95% | 9V ~ 35V | 800μA | - | 175μA | VCS=400mV (set by CS voltage) | SOT23-6L | |
| AP3164 | High Performance Buck LED Driver | 95% | 9V ~ 30V | 1.1mA | - | 20μA | VCS=0.8V (set by CS voltage) | SOP8 | |
| AP3168A | 4CH High Performance LED Driver | - | 7V ~ 30V | 2.2mA | - | 50μA | - | SOP16 | |
| AP3168L | 1CH High Performance LED Driver | - | 7V ~ 30V | 2.2mA | - | 50μA | - | SOP8 |
| Product | Character | Operating Voltage | Accuracy | Reset Thershold | Reset Voltage | Supply Current | Reset Timeout | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP0809 | Delay Built-in | 1.2~5.5V | ±2% | 2.63~4.63V | 0.8VCC | 2μA | 250ms | SOT23-3L | - |
