Solutions

Solutions

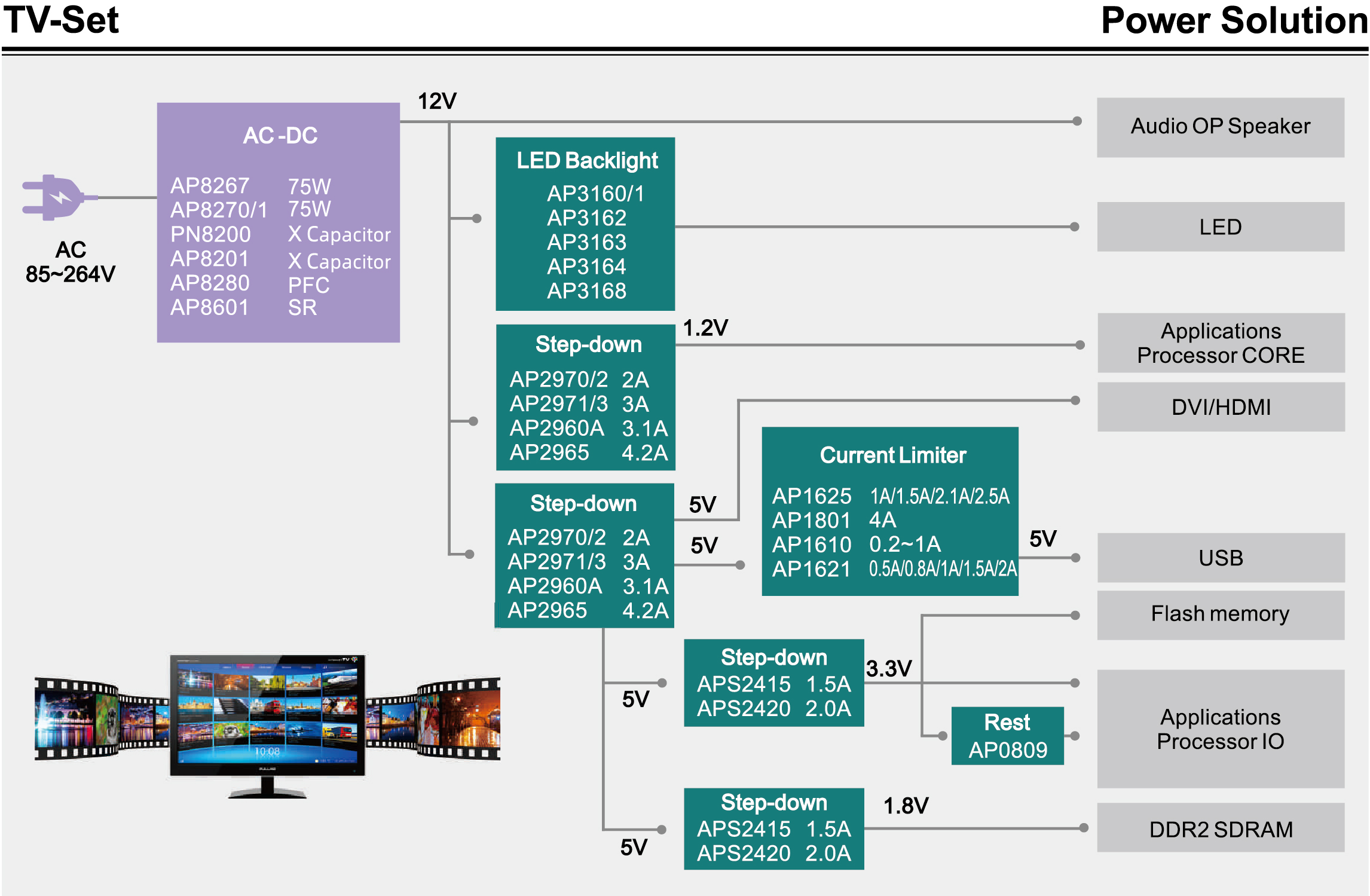

TV-Set

TV-Set



ProductCharacter

Standby

Power

Start-up
Current
VDD


Operation

Voltage

Vcc_Clamp

Output

 Power

FrequencyPackageNote
AP8267           ?PWM Controller?<100mW2uA8~26V27V<70W 65kHzSOT23-6-
PN8270            ??PWM Controller <100mW4uA10~26V28V<70W 100kHzSOT23-6-


ProductCharacter

Total X

Capacitance

Maximum

Frequency

BV

Supply

 Current

Output

Power

FrequencyPackageNote
PN8200           X Capacitor Discharge100nf to 6μF1.5MΩ to 130kΩ1000V15uA--SOP8
PN8201            X Capacitor Discharge100nf to 6μF1.5MΩ to 130kΩ1000V15uA--SOP8


ProductCharacter

Driver

Standby

Power

Maximum

Frequency

VDD

Operation

Voltage

Output

Power

CC/CV

precision

PackageNote
PN8280           COT PFC ControllerMOS<75mW 135kHz9V~50V90W~350W-SOP8


ProductCharacter

BV

RDS(on)

Standby

 Power

Max VDD

Operation

Voltage

Output

Power

Operation

Mode

Package Note
PN8601         SR Converter120V-5mW 20V20VDCM/CCM/QRSOT23-6LCharger/Adapter


ProductCharacter

Maximum

 Effciency

Operating

Voltage

Quiescent Iq

Output

 Voltage

Output VersionsAccuracyPackageCross Reference
AP2970

500kHz 2A

Synchronous PWM

95%4.5~18V400μA0.6~13VAdj±2%SOT23-6L
AP2971

500kHz 2A

Synchronous PWM

95%4.5~18V400μA0.6~13VAdj±2%SOT23-6L
AP2972

500kHz 2A

Synchronous PWM

95%4.5~18V400μA0.6~13VAdj±2%SOT23-6L
AP2973

500kHz 3A

Synchronous PWM

95%4.5~18V400μA0.6~13VAdj±2%SOT23-6L


ProductCharacter

Maximum

 Effciency

Operating

Voltage

Quiescent Iq

Output

 Voltage

Output VersionsAccuracyPackageCross Reference
AP2960A          133kHz 30V 3A

Synchronous CV/CC Step-Down Converter

94%6~30V2.5mA0.808~12VAdj±2%SOP8/PP
AP2965

130kHz 40V 4.2A Synchronous CV/CC Step-Down Converter

96%6~40V0.5mA3.4~16.5VAdj±2%SOP8/PP-


ProductCharacter

Maximum

 Effciency

Operating

Voltage

Quiescent

Iq

Output

Voltage

Output

 Versions

AccuracyPackageCross Reference
APS2415            1.5MHz,1.5A Synchronous PWM96%2.5~6.5V300μA0.6~5.0VAdj±2%SOT23-5L
APS2420          1MHz,2A Synchronous PWM97%2.5~6.0V60μA0.6~5.0VAdj±2%

SOT23-5L

SOT23-6L

 DFN3*3-10

 MSOP-10EP





ProductCharacterOperating VoltageCurrent LimitOperating CurrentQuiescent IqIq in ShutdownRdsonPackageCross Reference
AP1610          Programmable Power Switches2.4~5.5V130mA~1400mA-9μA<1μA200mΩSOT23-5L-
AP1621            Power Switches with Flag2.5~5.5V2.1A/1.5A/ 1A/0.65A1.5A/1A/ 0.8A/0.5A25μA<1μA80mΩ

SOT23-5L

UDFN1.8*2.0-6


AP1625            Power Switches with Flag2.7~5.5V1.8A/2.75A/3.2A1.5A/2.1A/2.5A25μA<1μA55mΩSOT23-5L
AP1801            Power Switches with Flag2.7~5.6V-4A100μA<1μA21mΩDFN3*2-14L


ProductCharacterTypical EffciencyOperating VoltageQuiescent IqOutput VoltageIq in Shutdown

SW

 Current Limit

PackageCross Reference
AP3160         120kHz Boost Controller for LED Driver95%9V ~ 35V800μA′-175μA

VCS=400mV

 (set by CS voltage)

SOP8
AP3161

120kHz Boost Controller  for LED Driver

95%9V ~ 35V800μA-175μA

VCS=400mV

(set by CS voltage)

SOP8
AP3162            4CH High Performance LED Driver95%9V ~ 30V6mA-20μA

VCS=380mV

(set by CS voltage)

SOP16-PP

TSOP16-PP

SOP16

DIP16


AP3163

120kHz Boost Controller

for LED Driver

95%9V ~ 35V800μA-175μA

VCS=400mV

(set by CS voltage)

SOT23-6L
AP3164            High Performance Buck LED Driver95%9V ~ 30V1.1mA-20μA

VCS=0.8V

(set by CS voltage)

SOP8
AP3168A            4CH High Performance LED Driver-7V ~ 30V2.2mA-50μA-SOP16
AP3168L            1CH High Performance LED Driver-7V ~ 30V2.2mA-50μA-

SOP8


ProductCharacter

Operating

 Voltage

Accuracy

Reset

 Thershold

Reset

Voltage

Supply

Current

Reset

 Timeout

Package

Cross

 Reference

AP0809            Delay Built-in1.2~5.5V±2%2.63~4.63V0.8VCC2μA250msSOT23-3L-
AC-DC DC-DC Driver Digtal PMIC Power Device Power Module
Note: If you need product datasheet or design reference report,please click here.>>
